FlowGuide
EXTEND THE REACH OF THE GUIDING CATHETER WITH REDUCED PRESSURE DAMPENING
The FlowGuide guide extension catheter reduces pressure dampening through 9 small perfusion openings in the distal shaft. A radiopaque soft tip for true distal end visibility facilitates precise device positioning. A stainless steel reinforcement embedded in the distal shaft ensures optimal lumen integrity and smooth device delivery. The oval push rod guarantees no compromise with side along SDS delivery while securing optimal pushability.
CATEGORY
Vascular Intervention Coronary Guide Extension Catheter
-
Continuous distal perfusion
-
Compatible with IVUS
-
Superior lumen integrity

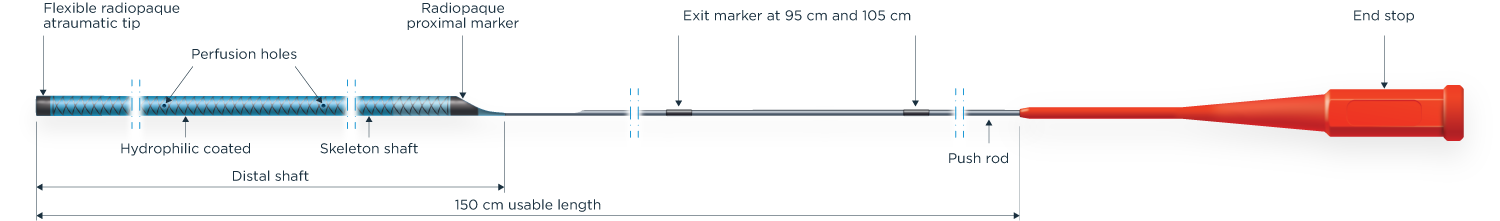

Schematic
Technical Data
| Guide extension catheter | FG60F | G70F25150 |
|---|---|---|
| Distal shaft length | 15 cm | 25 cm |
| Shaft material | Polyether Block Amide | Polyether Block Amide |
| Tip | Flexible, radiopaque, 1.3 mm length | Flexible, radiopaque, 1.3 mm length |
| Outer coating | Hydrophilic distal 12 cm | Hydrophilic distal 12 cm |
| Exit markers | 95 cm and 105 cm | 95 cm and 105 cm |
| Usable length | 150 cm | 150 cm |
Order Information
| Product | IMDS article number | Required guide catheter ID | FlowGuide ID | Distal shaft length |
|---|---|---|---|---|
| FlowGuide 6F | FG60F | 6F ID ≥ 0.070" (1,78 mm) | 0.056" (1.42 mm) | 15 cm |
| FlowGuide 7F | G70F25150 | 7F ID ≥ 0.078" (1.98 mm) | 0.062" (1.57 mm) | 25 cm |
FlowGuide 6F is registered under device name FlowGuide Rapid Exchange Guide Extension.
FlowGuide 7F is registered under device name Guidion Rapid Exchange Guide Extension.
